南澳州建筑面板公司：Ace-Wall
Ace-Wall拥有超过50年建筑经验，开发了一种先进墙体技术，有绿色环保和节省成本的竞争优势。Ace-Wall可为房地产开发和建设制造先进的预制隔墙。Ace-Wall的服务适用于任何国家，并会在服务过程中与购买商积极合作，帮助其达到最佳的建筑成果。
Ace-Wall产品是一种具有防水功能、由石膏基和增强纤维组成的非承重墙板，专为现代住宅、商业和工业低层和高层建筑的外部和内部应用而设计。该产品由于产品成本和安装成本低，安装快速，强度重量比高，阻隔声音/热/火的性能强，环保特性强等特点，使建筑行业彻底革新。
工商注册编号：34 008 118 910
关于Ace-Wall
Internal Partition Walls, External Cladding and Fencing
内部分隔墙，外部覆层和围墙
Our partition wall product is a factory manufactured; environmentally friendly; precast; pre finished hollow panel; made from gypsum plaster, glass roving’s, and waterproofing polymer. The factory produces panels which can be used in any height buildings as they are non-load bearing.
我们的隔断产品是工厂制造的环保制品; 由预制空心板、石膏灰泥、玻璃粗纱和防水聚合物制成。 工厂生产的面板可用于任何高度建筑物，因为它们是非承重的建筑材料。
Our product reduces construction time like precast concrete panels and has a significant cost advantage compared to block-work provides significantly better finishes. As the building industry moves to reduce site labour, reduce construction times, and increase the quality of finishes. The potential for our product will continue to grow.
我们的产品可有效减少施工时间，如预制混凝土板，并具有显著的成本优势相比块体工作提供了更好的表面处理。随着建筑行业减少现场劳动力、减少施工时间、提高粉刷质量的要求，我们将继续发掘产品的潜力。

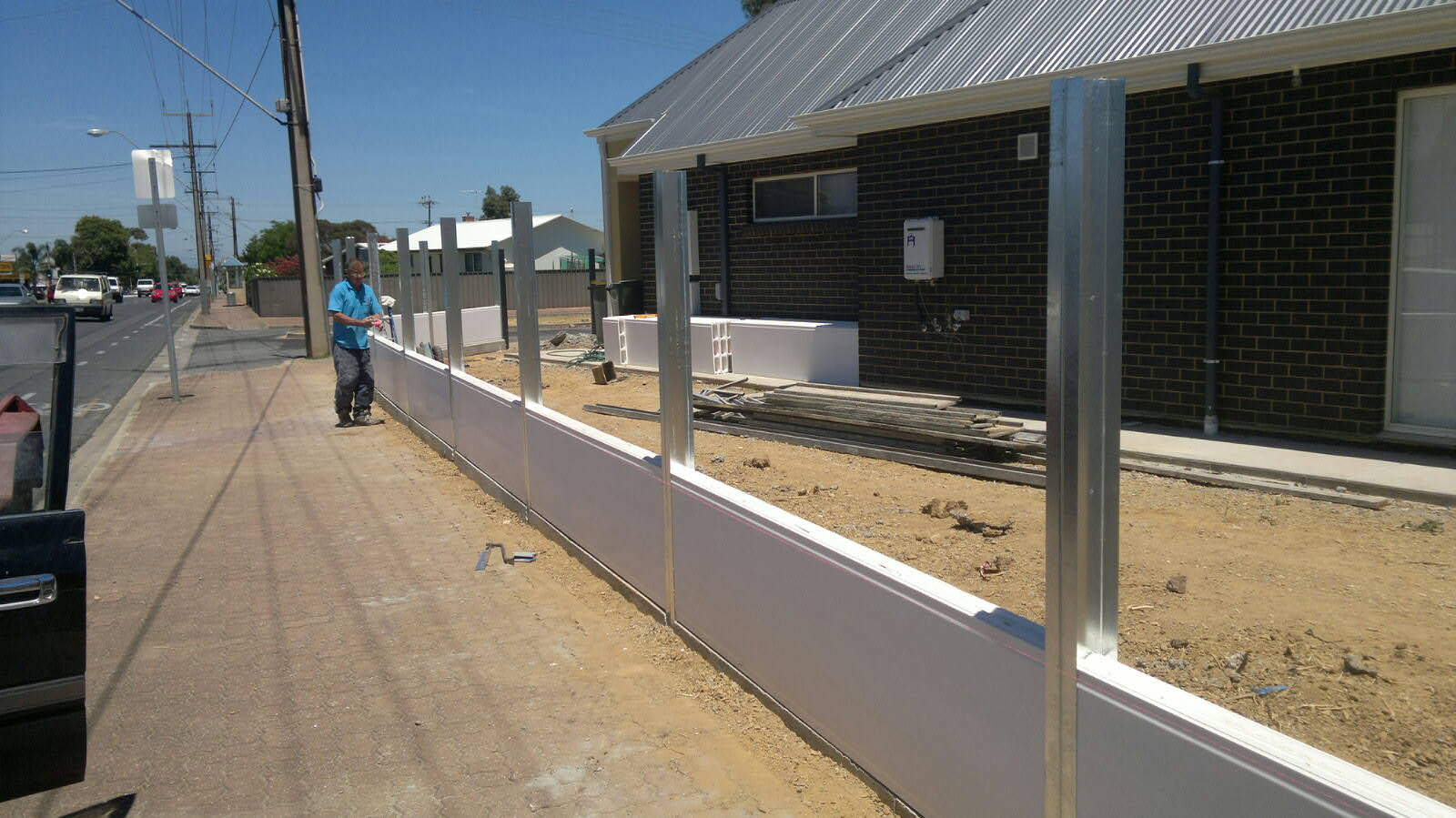

The Ace-Wall system is an excellent solution for fencing/boundary walls. The system is self spanning, eliminating the need for footings. There is no cracking with the Ace-Wall fencing system. It is a fast, simple and has an economical installation process.
Ace-Wall系统是围栏/边界墙的一个极好的解决方案。 该系统是自扩展，无需基础。 Ace-Wall围墙安装系统没有裂缝，是一个快速、简单、经济的安装过程。
产品展示
Installation Process
安装过程
Ace-Wall is designed to be installed by a semi-skilled, trained workforce under specialist supervision.
Ace-Wall设计由专业监督下的训练有素的劳动力安装。
The concept of the product and the installation process avoid the need for highly skilled bricklayers and renderers and the associated “wet materiels” that are required for these processes.
产品的规划和安装过程避免了对高度熟练的砌砖工具和渲染器以及这些工艺所需的相关“湿材料”的需要。
Strict time and motion studies have shown that a team of 7 supervised technicians can complete the installation of 250 sq.m. of walling in one 8 hour shift.
严格的时间和运动研究表明，一个由7名监督技术人员组成的团队可以在8小时内完成250平方米的围墙的安装。
A hierarchical improvement process provides the incentive for the technicians to develop to “Supervisor” status and higher levels of responsibility.
分层改进过程为技术人员提供了发展为“主管”地位和更高级别的责任的激励。
Commercial Issues.
商业问题
Ace-Wall can be supplied for installation by the customer or a third party where specialist training and supervision can be provided under the supply contract.
Ace-Wall可以由客户或第三方提供安装，根据供应合同提供专业培训和监督。
Alternatively Ace-Wall can be supplied and installed under a turnkey contract.
或者，Ace-Wall可根据交服务合同提供安装。
The supply of customized installation materiels (e.g. galvanized top angle and floor track) can be out-sourced or undertaken internally by establishing a production source within the business operations (e.g. roll-forming plant).
定制的安装材料（例如镀锌顶角和地板轨道）的供应可以通过在商业操作（例如轧制成型车间）内建立生产源而被外包或内部承包。
Infill options such as perlite granules can be offered to enhance the thermal insulation and can be produced internally by setting up the necessary oven process to produce the expanded perlite granules.
可以提供诸如珍珠岩颗粒的填充选项以增强热绝缘，并且可以通过设置必要的烘箱过程以产生膨胀珍珠岩颗粒而在内部产生。
On-site supervision by trained personnel is mandatory to ensure the correctness and quality of the finished installation.
必须由受过培训的人员进行现场监督，以确保成品正确安装及安装质量。
产品说明
Injection-Moulded Full-Height Wall and Fence Panels
注塑全高度墙和栅栏面板
Ace-Wall is a fibre-reinforced, water-resistant, gypsum-based, non-load-bearing wall panel, designed for external and internal applications within modern residential, commercial and industrial low-rise and high-rise developments. The product is set to revolutionize the construction industry due to its low product and installation cost, rapid installation, high strength-to-weight ratio, advanced sound/thermal/fire performance and strong eco-friendly characteristics.
Ace-Wall是一种具有防水功能、由石膏基和增强纤维组成的非承重墙板，专为现代住宅、商业和工业低层和高层建筑的外部和内部应用而设计。该产品由于产品成本和安装成本低，安装快速，强度重量比高，声音/热/火/阻隔性能强，环保特性强等特点，使建筑行业彻底革新。
In Adelaide Ace-Wall panels are manufactured from a length of 2100mm - 3600mm and a width of 600mm and thickness of 100mm.
在阿德莱德Ace-Wall面板的长度为2100mm-3600mm，宽度为600mm，厚度为100mm。
优势详解
Products:
产品
Light Weight.
轻量级
Low Cost.
低成本
Rapid Installation.
快速安装
High Quality Finish (smoth, flat, crack-free).
高质量光洁度（光滑，平整，无裂纹）。
High Resistance (thermal, sound, fire, earthquake, termite, water).
高电阻（热，声，火，地震，白蚁，水）。
Low Carbon Footprint (low embodied energy, abundant natural materials).
低碳环保（低承载能量，丰富的天然材料）。
Recycable (re-calcination).
再循环（再煅烧）
Factory
工厂
High Capacity (one panel per minute).
高产量（每分钟一个面板）。
High Energy and material efficiency.
高能量和材料效率。
Advanced computerized, automated operation.
先进的计算机化，自动化操作。
Modular (expandable, re-locatable close to major development sites).
模块化（可扩展，靠近主要开发网站可重新定位）。
Eco-Friendly.
环保
Materials
材料
Gypsum (Beta quality)*
石膏（测试质量）
Water
水
Fiber-Glass (short fiber)
玻璃纤维（短纤维）
Waterproofing Agent
防水剂
Retarder
减速器
Activator
激活剂
Optional Infill (e.g. concrete, perlite)
可选填充料（如混凝土，珍珠岩）
* Can be obtained by calcination of industrial waste material such as "flue gas" or "phospho" gypsum.
可通过煅烧工业废料如“烟道气”或“磷酸石膏”获得。
Ace-Wall Panels
Ace-Wall面板
Pre-fabricated non load bearing
预制非承重
Hollow section (filled or unfilled options)
空心型（填充或未填充选项）
Precision moulded construction
精密模压结构
Fiber-reinforced water-resistant gypsum
纤维增强耐水石膏
Advanced perlite infill option
高级珍珠岩填充选项
Dimensions
尺寸
Height - 2.1 m to 3.6 m
高度 - 2.1米至3.6米
Width - 60 cm
宽度-60厘米
Thickness - 12 cm
厚度-12厘米
Nominal Weight
标称重量
38 Kg per sq.m. (unfilled)
38公斤每平方米 （未填充）
45 Kg per sq.m. (e.g. perlite infill)
45公斤每平方米 （例如珍珠岩填充物）
Precision Cut to tight tolerance
精度切割到最小公差
Rapid Installation
快速安装
250 sq.m. per 8 hour shift
250平方米 每8小时班次
7 installers
7安装程序
Tongue and groove joints
舌和槽接头
Integral spacing control
整体间距控制
Plaster adhesive in joints
接缝中的膏状粘合剂
High quality finish
高品质完成
External: Ready for texture coating
外部：准备纹理涂层
Internal: Ready for painting or tiling
内部：准备绘画或平铺

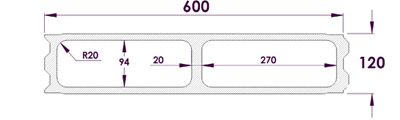

Ace-Wall Panel Section Detail 120mm
Ace-Wall 120mm面板部分详细信息

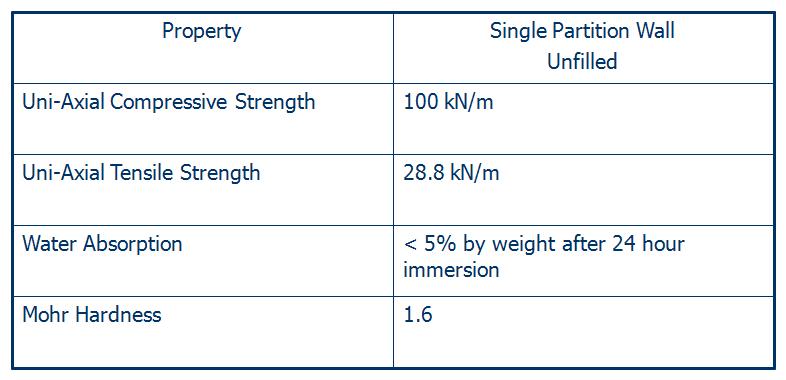

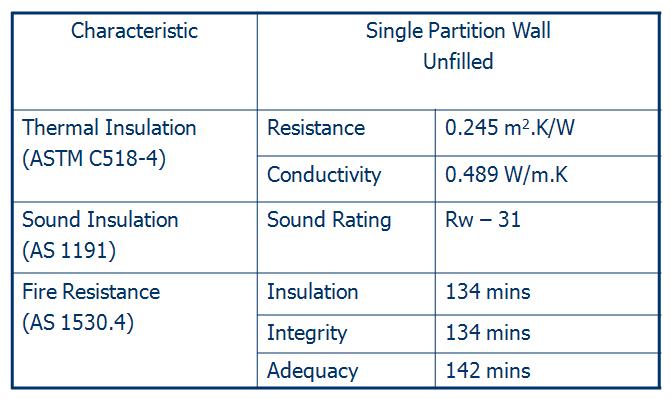

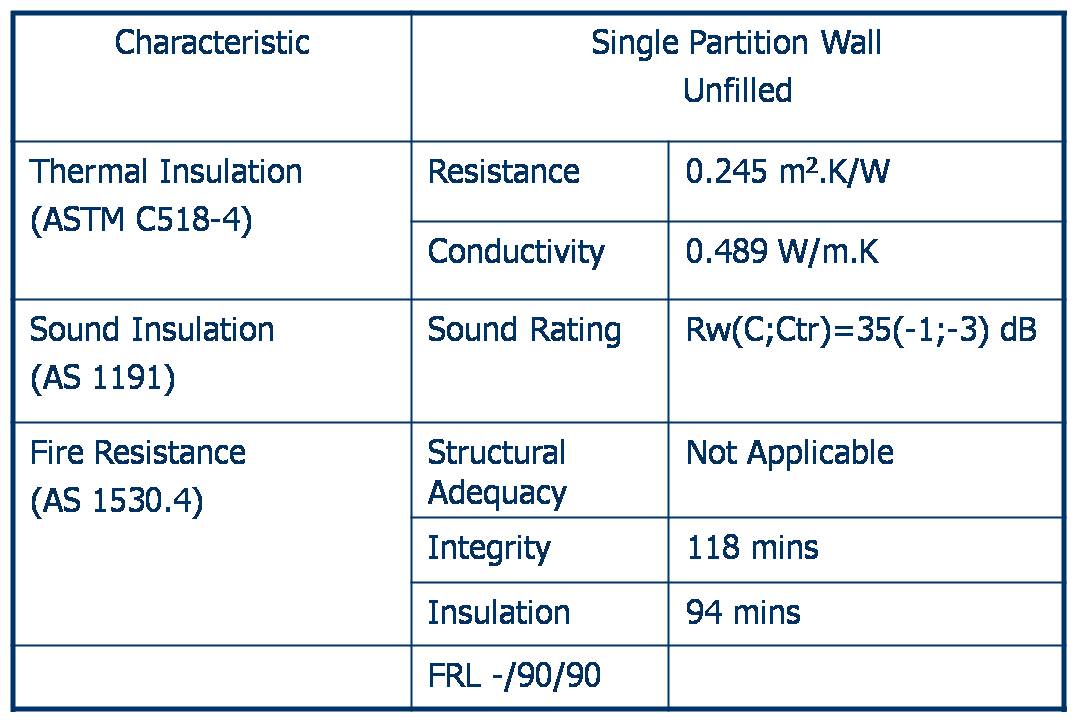

Ace-Wall Panel Performance
Ace-Wall面板性能

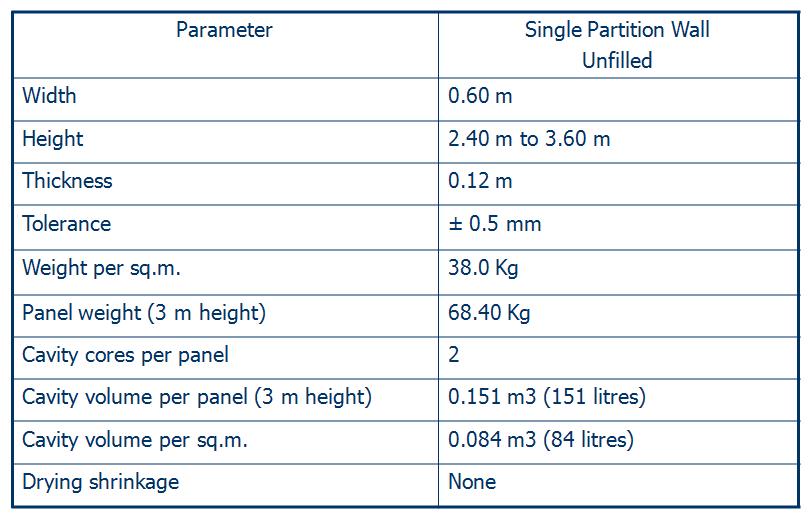

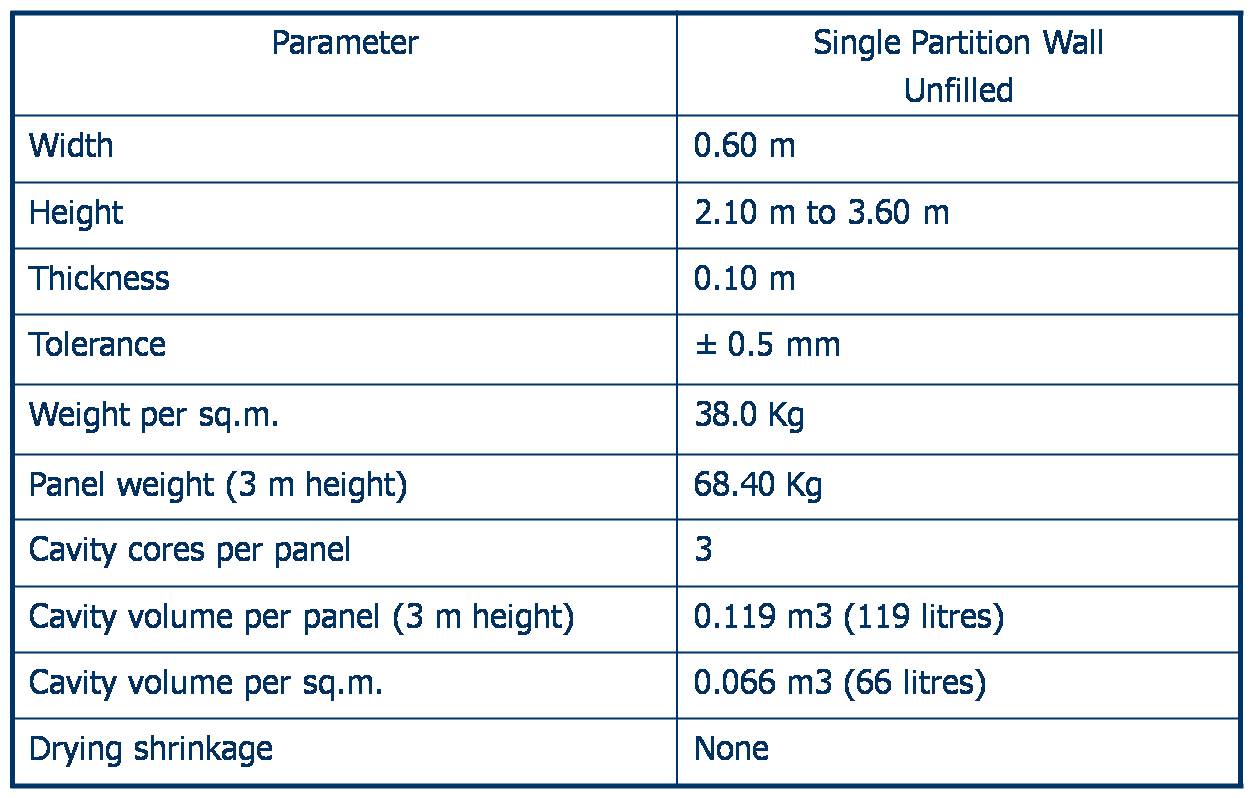

Ace-Wall Panel Physical
Ace-Wall 面板物理结构
Strength Test
强度测试
Practical test to demonstrate the strength of the panel:
展示面板强度的实际测试：
Steel bar fixed to an installed demonstration wall.
钢条固定到安装的演示墙上。
Fixings – 4 x 6mm fixing screws (HILTI screw locking devices).
固定 - 4 x 6mm固定螺丝（HILTI螺丝锁定装置）。
Man weighing 85 Kg successfully supported.
成功支持体重85公斤的人。
Note:
注意
The panel is capable of supporting the weight of a standard TV, central heating or air conditioning units, but will not support heavy wall-mounted bathroom fixtures (e.g. toilet, bidet, washbasin) unless these are also supported by the floor. If a wall suspension is required the solution is to make a local break in the wall and backfill locally with a concrete mix.
该面板能够支撑标准电视，中央供暖或空调单元的重量，但不支持沉重的壁挂式浴室装置（例如马桶，坐浴盆，洗脸盆），除非它们也由地板支撑。 如果需要墙悬挂，解决方案是在墙上进行局部破坏，并用混凝土混合物回填。

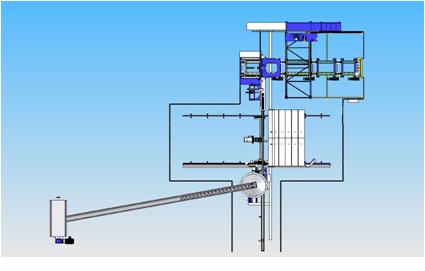

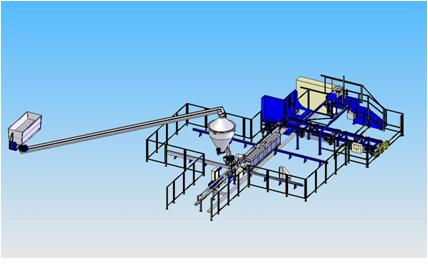

Ace-Wall Factory Layout
Ace-Wall工厂布局
(Currently installed in the Dubai Investment Park)
（目前安装在迪拜投资公园）
Precision moulding process
精密成型工艺
Computerized operation
电脑操作
Advanced automation
高级自动化
Process control
过程控制
Palletization
码垛
Process Alerts
过程警报
Capacity
容量
1 panel per minute
每分钟1面板
750,000 sq.m. per year
每年750000平方米
Environmentally friendly
环保

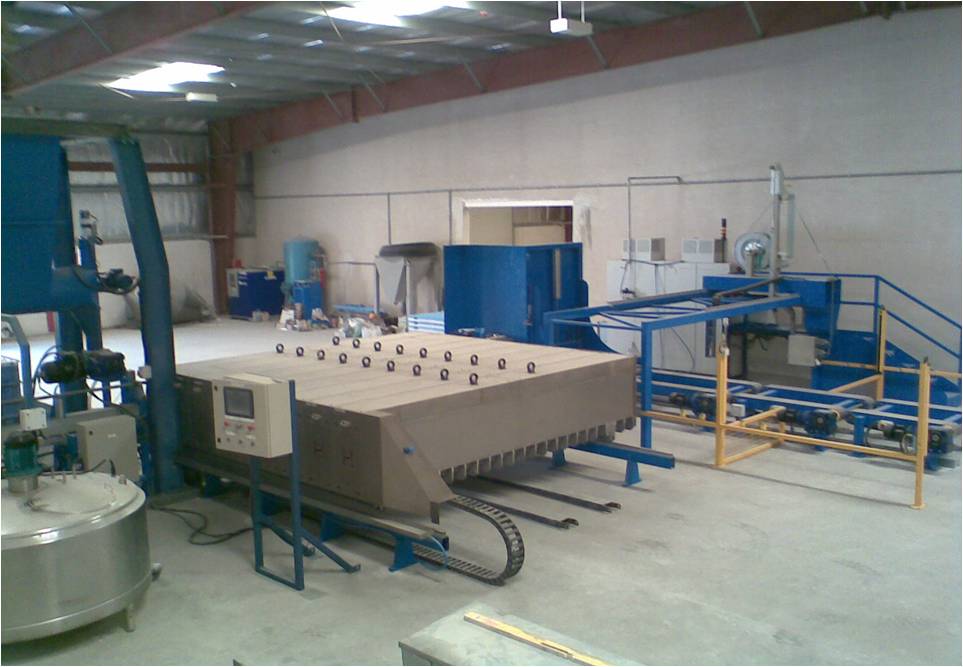

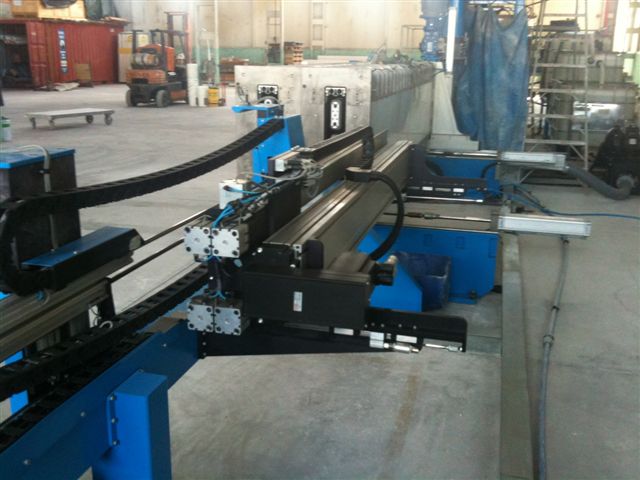

Ace-Wall Factory
Ace-Wall工厂
Advanced PLC-based automation.
高级PLC自动化。
Full built-in fault monitoring and diagnostic management.
全内置故障监控和诊断管理。
Control, monitoring and diagnostics possible via internet-link.
控制，监控和诊断可能通过互联网链接。
Full chemical and mechanical process control.
全面的化学和机械过程控制。
Full safety interlocks and sensors.
全安全联锁和传感器。
Designed for 24/7 operations.
专为24/7操作。
Rapid automated production of high quality panels (one per minute).
快速自动化生产高品质面板（每分钟一个）。
Free or forced air convection drying of panels prior to shipment.
在装运前面板的自由或强制空气对流干燥。
Ace-Wall Panels (9) Palletized
Ace-Wall面板（9）托盘化
Environment
环境
Carbon Emissions
碳排放量
Kyoto Protocol – Carbon Credit mechanism adopted by 170 countries.
京都议定书 - 170个国家采用的碳信用机制。
Extraction of raw gypsum materiel (can use industrial waste gypsum products)
原料石膏材料的提取（可使用工业废石膏产品）
Production process, local transportation to site, installation process
生产过程，当地运输到现场，安装过程
Full recyclable disposal at the end of useful life (re-calcination)
在使用寿命结束时的完全可回收处置（再煅烧）
Avoidance of brick, cement and concrete produced by burning of fossil fuels
避免使用化石燃料燃烧产生的砖，水泥和混凝土
Brickworks give rise to soil erosion caused by mining of clay
砖块引起由于开采粘土引起的土壤侵蚀
Gypsum based building materiels now preferred in countries such as China
石膏基建筑材料现在在诸如中国的国家中是优选的
Ace-Wall Factory:
Ace-Wall工厂：
Environmentally friendly
环保
Gypsum may be extracted from industrial waste (flue gas or phospho gypsum)
石膏可以从工业废物（烟道气或磷石膏）
No pollution, no water or materiel waste (mould cleaning water recycled)
无污染，无水或物资废弃物（模具清洗水循环）
No gas or chemical emissions
无气体或化学排放
Low noise level (no ear protection required)
低噪音水平（无需耳朵保护）
No sewerage disposal necessary (other than for workforce and office)
不需要污水处理（人力和办公室除外）
Australia - Energy Consumption
澳大利亚 - 能源消耗
Upto 10% of Australia’s annual energy consumption has been attributed to energy embodied in the construction of residential buildings (includes materials and construction process)
澳大利亚每年能源消耗的10％是由于住宅建筑（包括材料和施工过程）的能源。
Estimates suggest that the embodied energy in a current standard residential building construction is equivalent to 15-20 years of occupational energy
估计表明，目前标准住宅建筑中的嵌体能源相当于15-20年的职业能源
The Australian materials industry accounts for 20% of the national energy budget each year
澳大利亚材料工业每年占国家能源预算的20％
Since Australia mostly uses fossil or solid fuel as its energy source there is a direct correlation between Embodied Energy and CO2 emission
由于澳大利亚主要使用化石燃料或固体燃料作为其能源，因此在实体能量和二氧化碳排放之间存在直接的相关性
Embodied Energy is therefore an important component of the life-cycle energy use attributable to residential buildings in Australia
因此，实体能源是澳大利亚住宅楼宇的生命周期能源使用的重要组成部分
Ace-Wall has significantly lower Embodied Energy than its counterparts such as concrete, cement and brick.
Ace-Wall的实体能量明显低于混凝土，水泥和砖块等。
CO Emissions - A Comparison
CO排放 - 比较
Ace-Wall technology compared to brick veneer as external wall cladding of residential buildings in Australia.
Ace-Wall技术相比砖贴面作为澳大利亚住宅建筑的外墙覆层。
It is estimated that Australia-wide use of Ace-Wall type product instead of brick veneer for external cladding of residential dwellings would result in a saving of 63% of applicable CO2 emissions.
据估计，澳大利亚广泛使用Ace-Wall型产品代替砖贴面用于住宅住宅的外部包覆，将节省63％的二氧化碳排放。
It is further estimated that this saving equates to the total amount of emissions liberated in a year from domestic consumption (heating, cooling and cooking) of all households in South Australia.
进一步估计，这种节省等于一年中从南澳所有家庭的国内消费（供暖，制冷和烹饪）释放的总排放量。
1 – Data source: Ecologically Sustainable Development: Approaches in the Construction Industry
1 - 数据来源：生态可持续发展：建筑行业的方法Robert Omahen, Regensburg University, 2002
Product Cost Advantages
产品成本优势
Light Weight (reduced cranage, foundation costs).
轻重量（减少起重机，基础成本）。
Precise Dimensions (certainty in design and construction tolerances).
精确尺寸（设计和构造公差的确定性）。
Reduced Construction Time (30% of conventional blockwork).
减少施工时间（常规块体工程的30％）。
Reduced Site Labour (50% of conventional blockwork).
减少现场劳动（50％的常规模块）。
Elimination of Rendering (no rendering costs).
消除渲染（无渲染成本）。
High Strength-to-weight ratio (construction materiel efficiency).
高强度重量比（建筑材料效率）。
Reliable Supply (abundant raw materiel).
可靠的供应（丰富的原材料）。
Minimal Training (avoids blockwork and rendering skills).
最小训练（避免块工作和渲染技能）。
Reduced Materiel Holding (rapid “delivery to installation” time).
减少物料保持（加快“交付到安装”时间）。
Reduced Project Management (simplified logistics and skill interaction).
减少项目管理（简化物流和技能交流）。
Carbon Credits (avoidance of penalties for excess carbon emissions).
碳信用额度（避免对过量碳排放的惩罚）。
= Reduced Cost!!
降低成本！！
